Harvest - Live Weight Viewing

Live Weight and Remote Control features are automatically unlocked for Agrimatics Cloud accounts with at least three active Plant and Harvest Pro licenses. Live features are available on Libra Harvest apps running version 5.6.0 or newer.

Live Weight View

Live weights can be viewed from the Live section found under the More tab of the Libra Harvest app. Here users can see connected Primary devices' live weights over any distance (internet connection required), Settings, and connection status.

Live weights can also be viewed from the Display tab by swiping right  anywhere on the menu below the main weight display or by tapping the broadcasting icon in the top left corner above the display. Only devices that have been favourited in the Live tab will appear when viewing this way.

Loading/Unloading

When cart loading or unloading is detected, the connected user will be highlighted. Users being loaded will be highlighted in orange, users who are unloading will be highlighted in green.

Extended Remote Range

Remote devices connected to a Libra Cart unit that exit Bluetooth range will begin using an internet connection to view weights on the Display tab. This allows Remote devices to be used no matter the distance from the grain cart.

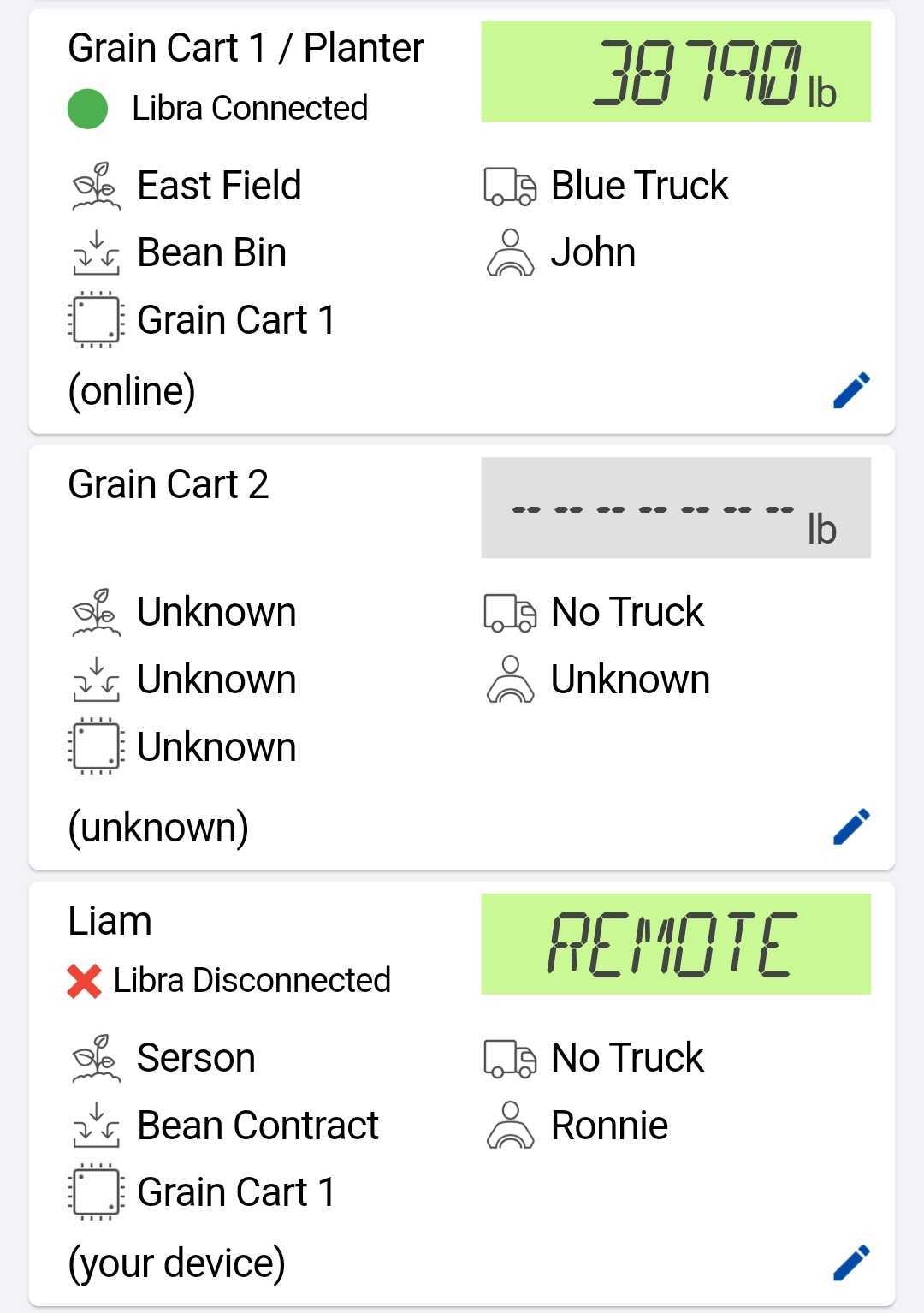

Connection Status

Users will show their current connection status on the Live screen as well.

Weight Display - A coloured weight display means that the user has the app running, while a grey screen means that their app is powered off. A user that is not connected will display the last weight they registered when the app was running.

Libra Connected - Primary users will show their current Libra connection status. Users that have an active Bluetooth connection to a Libra device will show the message "Libra Connected." While Primary device users that have lost a previous connection to a Libra device (ex. mobile device leaves Bluetooth range), will show "Libra Disconnected."
